Hydraulic Swing Arm manual die cutting machine

FOB Reference Price:Get Latest Price
US $1-2 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CHAOYING
Model Number:
XYJ-2A/20
After-sales Service Provided:
Overseas third-party support available
max cutting force:
20T
machine worktable size:
1000*500mm
upper beam size:
350*500mm
motor power:
1.5kw
oil pump:
CML
hydraulic valves:
yuken
motor:
Dedong
electronic component:
schneider
SupplyAbility
SupplyAbility:
60 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard wooden box packing
Port
Shanghai
Lead Time :
within 10 days



CE hydraulic traveling head shoe making machine



Manual die cutting machine

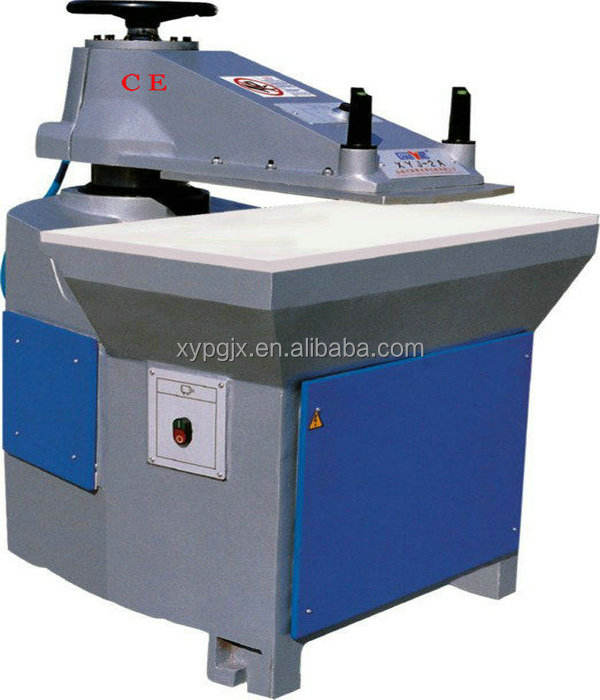

Hydraulic Swing Arm manual die cutting machine

Usage and characteristics:
1.The swing arm can sway flexibly with excellent operating visual field, so it is especially suitable for cutting genuine leather materials.
2.The switch for operation with both hands ensures the safety of operators.
3.The column is provided with self-lubricating system without the need of manual lubricating,
which enhances the service life of machine.



CE hydraulic traveling head shoe making machine



Maximum cutting force                                               20 T
Upper swing arm size (mm)                                       350*500 mm
Lower worktable szie (mm)                                    1000*500mm
Adjustable stroke (mm)                                          0-75 mm
Range between the worktable                                         65-150mm
Motor power                                              1.5kW
Net weight                                           900kgs
Gross weight                                           1000kgs
Dimension                                     1050*1050*1600mm



Remark:We can make the machine according to your specifical requirements,for example the color,the motor information ,the size of working table etc.



CE hydraulic traveling head shoe making machine



      The leather cutting machine is mainly suitable for cut one layer or multilayer of leather, rubber, plastic,

 hard papers, fiber, chemical fiber, non-woven and so on.



         CE hydraulic traveling head shoe making machine

















































Machine making steps :

CE hydraulic traveling head shoe making machineCE hydraulic traveling head shoe making machine

FAQ :

Trade terms :  FOB , CIF , C&F , EXWORKS

Payment term : T/T  30% in advance as down payment term , the balance should be paid before

shipment , LC ;

Delivery time : one week if the machine is on stock , 30 working days if the machine is new-made ;

Package term : export standard crate ;

Factory views and certificates :



CE hydraulic traveling head shoe making machine



CE hydraulic traveling head shoe making machine

CE hydraulic traveling head shoe making machineCE hydraulic traveling head shoe making machine



Customers' visit



CE hydraulic traveling head shoe making machine

Contact information :

CE hydraulic traveling head shoe making machine
