automatic clips feeding PLC traveling head leather die cutting machine

FOB Reference Price:Get Latest Price
US $1-2 / Sets | 1 Set/Sets (Min. Order)
Model Number:
XYJ-1/25
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Chaoying
Machine Type:
Cloth Cutting Machine
Material Capabilities:
textile, non woven
Condition:
New
Certification:
CE
After-sales Service Provided:
Overseas third-party support available
hydraulic valve:
Camel brand made in Taiwan
hydraulic pump:
Yuken brand made in Japan-china venture
Contactor /thermal relay:
Schneider made in France
Electronic parts:
IDEC made in Japan
Range between the working tables:
30-150mm
Sidesway speed of traveling head:
50-250mm/s
Size of traveling head:
Dia.300mm
Size of lower worktable:
1600*500mm
Usage:
leather, rubber, felt, fabric, nylon, textile, carpet
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export package
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 35 To be negotiated
Video Description

Leather die cutting machine



automatic clips feeding PLC traveling head leather die cutting machine

Product Description

It is suitable for continuously cutting  material with  cutting die. It is especially suitable for cutting such as sports goods (ball), abrasives (abrasive paper), shoes (sole, insole, shoe-pad, upper of a shoe ), medical supplies and etc.

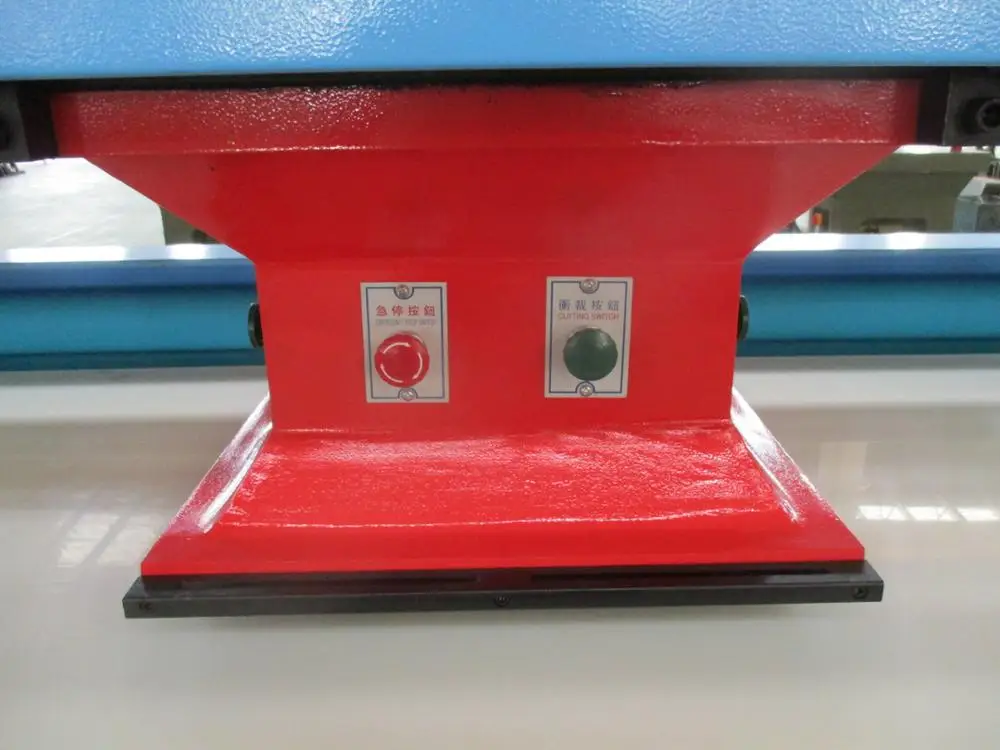

1. the traveling head can move two sides , up and down , it is controlled by PLC . the head can cut material automatically ;

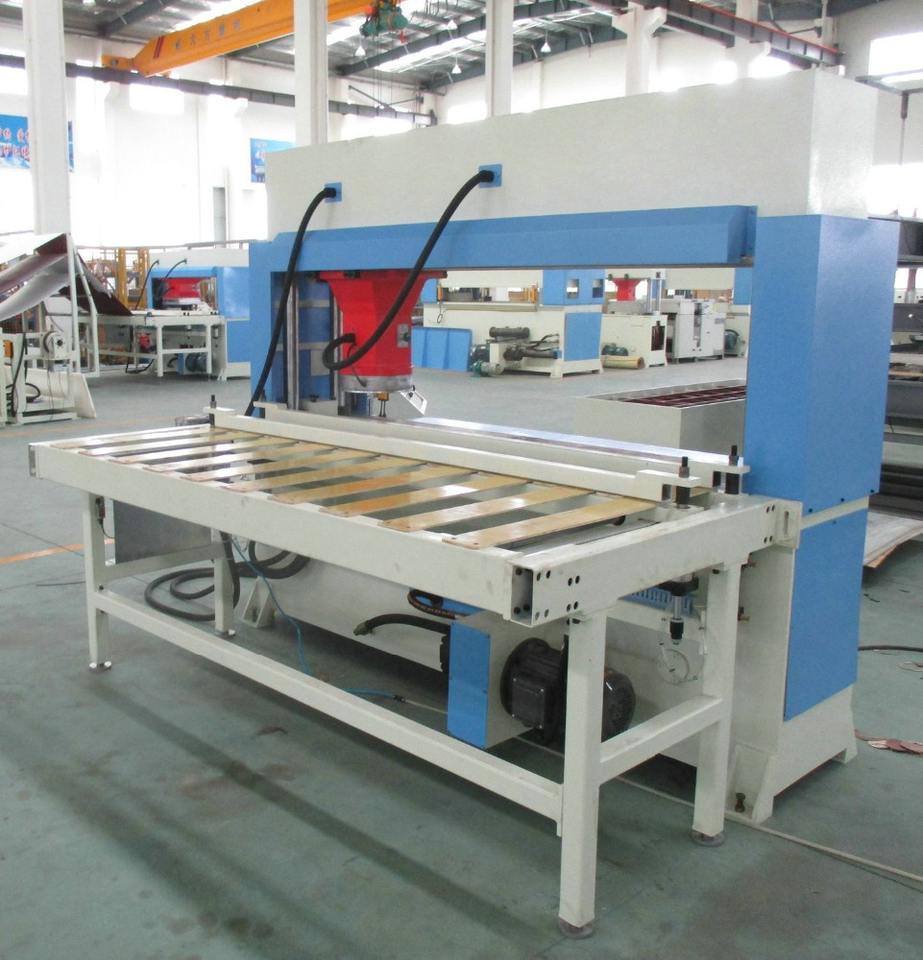

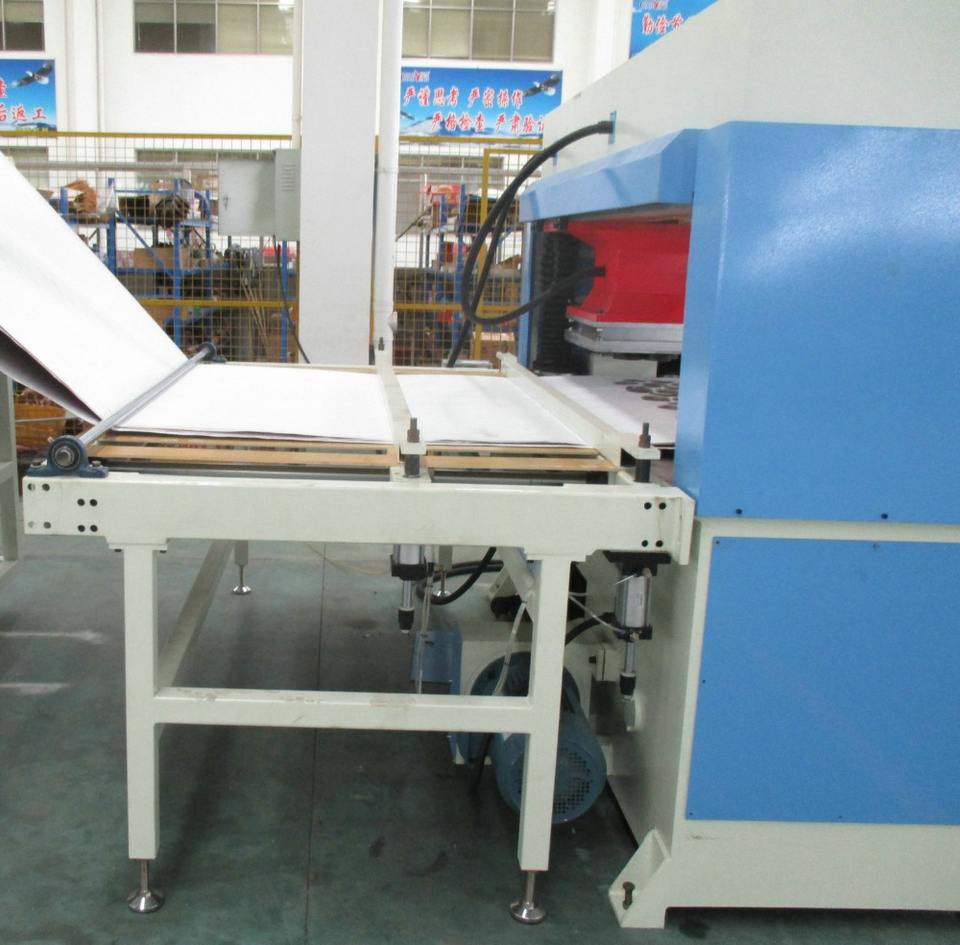

2. we can use many different way to feed the material onto cutting area automatically , for example : rubber roller , two clips and so on ;

3. we can use two kinds of ways to attached the die cut mold : magnetic disc and clips ;
4.When cutting, using the safety light curtain to ensures operators' safety ;



Machine specifications :



Max. cutting force

              250kN

           300kN

Stroke adjustment range

                          0—120mm

Range between the working tables

                         30—150mm

Feeding speed

                        20—90mm/s

Size of traveling head

                         Dia.300mm

Size of lower worktable

                         1600×500mm

Motor power

       2.2kW

              3kW

Overall dimension

2240×1180×1900mm

Total weight

2000kg

2100kg

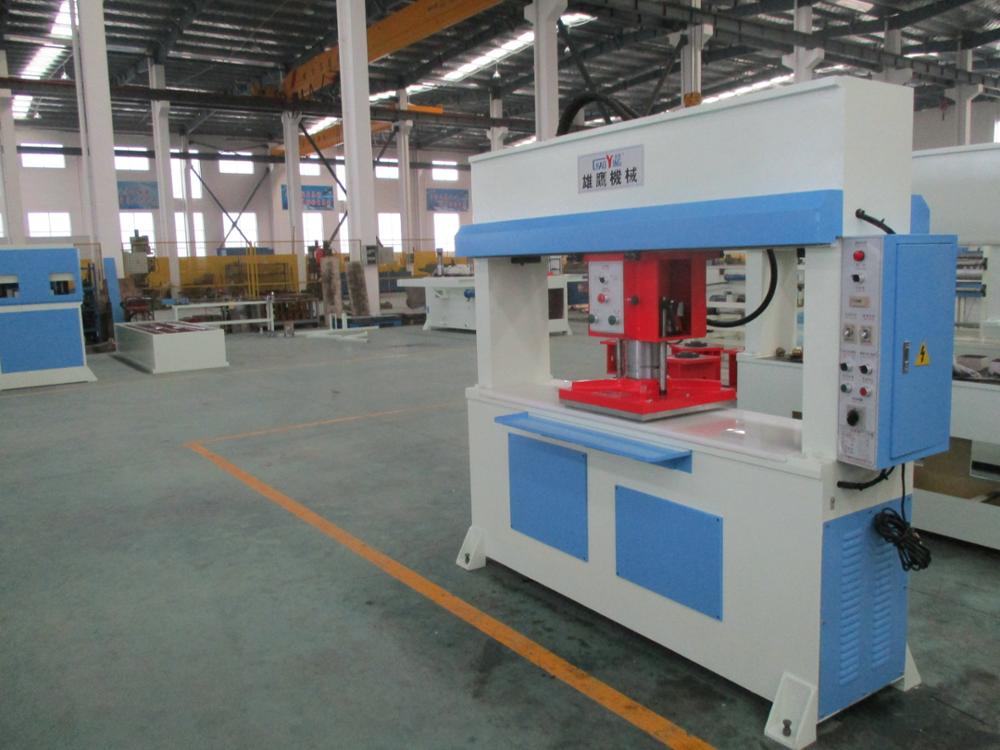

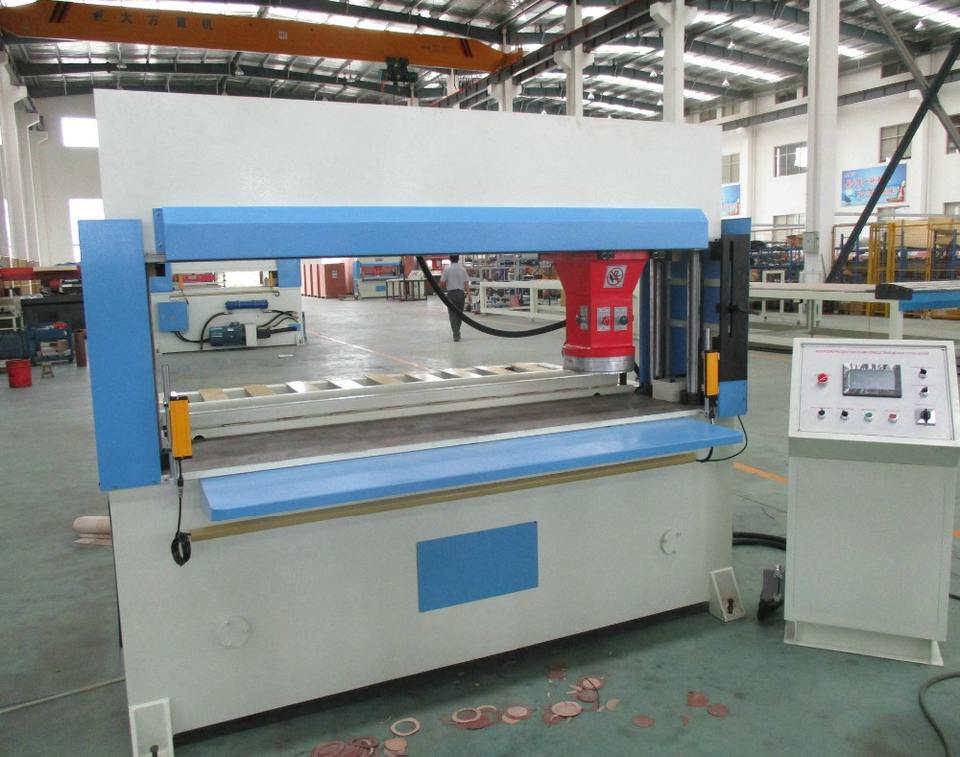

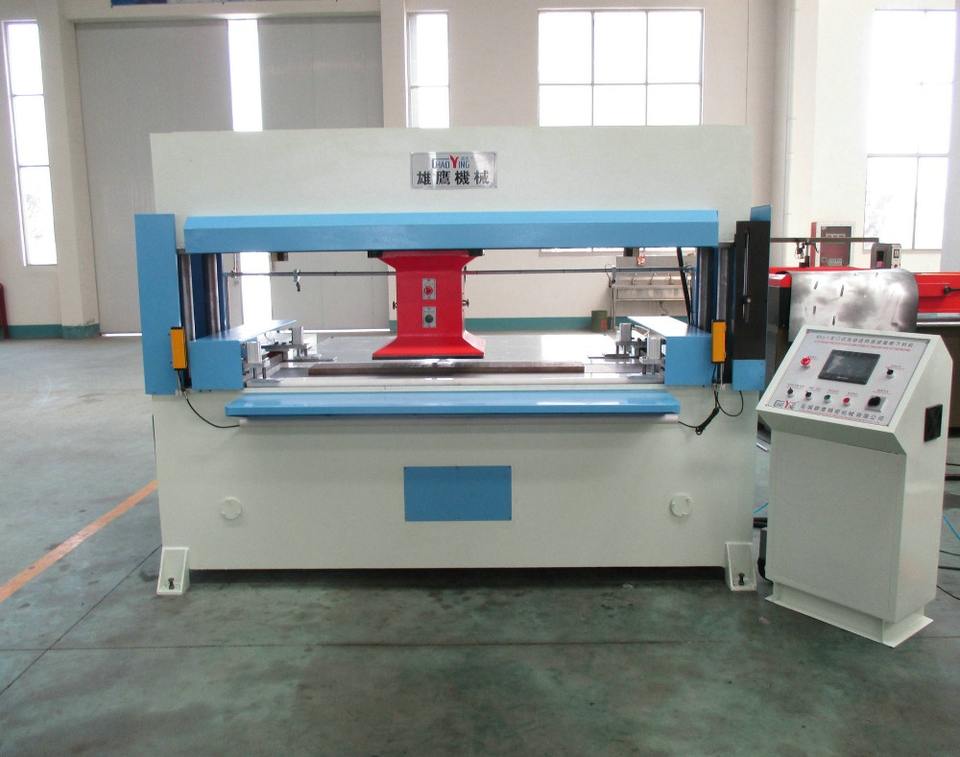

Relative machine photos  :


CNC Automatic feeding movable head leather cutting machineCNC Automatic feeding movable head leather cutting machineCNC Automatic feeding movable head leather cutting machine



Machine making steps :

CNC Automatic feeding movable head leather cutting machineCNC Automatic feeding movable head leather cutting machine

FAQ :

Trade terms :  FOB , CIF , C&F , EXWORKS

Payment term : T/T  30% in advance as down payment term , the balance should be paid before

shipment , LC ;

Delivery time : one week if the machine is on stock , 30 working days if the machine is new-made ;

Package term : export standard crate ;
