Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: CHAOYING
  • Model Number: XYJ-2C/27
  • After-sales Service Provided: Overseas third-party support available
  • type: Atom swing arm cutting machine
  • hydraulic valve: Camel brand made in Taiwan
  • hydraulic pump: Yuken brand made in Japan-china venture
  • Contactor /thermal relay: Schneider made in France
  • Electronic parts: IDEC made in Japan
  • the guarantee period: one year

Packaging & Delivery

Packaging Details standard exported wooden case
Delivery Time 4-7days

Atom swing arm cutting machine





Product Description

 Usage and characteristics



The machine is suitable for cutting single layer or multiple layers of leather, plastic, paperboard, fabric and other materials by forming cutter.

It is an ideal cutting device for shoemaking, luggage & baggage, clothing, automobile, artwork, packaging, electronics and other industries.

1.There are two types of cutting modes for selection.

The first type is small pressure stepless regulation.

The second type is that the cutting adopts intelligent pressure feedback design function without the need of setting cutting point.

The height of die cutter has no influence on the cutting and ideal cutting effect can be obtained from each cutting point.

2.Through double oil way static pressure supporting lubricating system,

 the vertical column makes operators’ work more easy, flexible and worry-saving.

3.The main fittings are made of high quality imported assemblies,

which have characteristics such as reliable quality, low noise, high efficiency and energy saving.



Main Technical Data(Customizable)



Maximum cutting force

22T

27T

Travel adjustment range

0—70mm

 0-100mm

Range between the working tables

30—100mm

45-145mm

Size of upper rocker

360×430mm

500*500mm

Size of lower worktable

900×430mm

1000*500mm

Motor power

1.1kW

1.5kw

Overall dimension

950×950×1350mm

1050*1050*1600mm

Net weight

900kgs

950kgs

Gross weight

 1000kgs

 1050mm

adjusting stroke

Automatic



Electronic supply

50HZ 60HZ 220V ,380V ,440 V single phase three phase  or as optional



Hydraulic oil



46# or 68#

Automatic grade



Manual

Machine color

Red and green or as your optional

Machine logo

CHAOYING or Customized

OEM&ODM

Welcome



Cutting press machine application:



The leather cutting machine is mainly suitable for cut one layer or multilayer of leather, rubber, plastic,

 hard papers, fiber, chemical fiber, non-woven and so on.

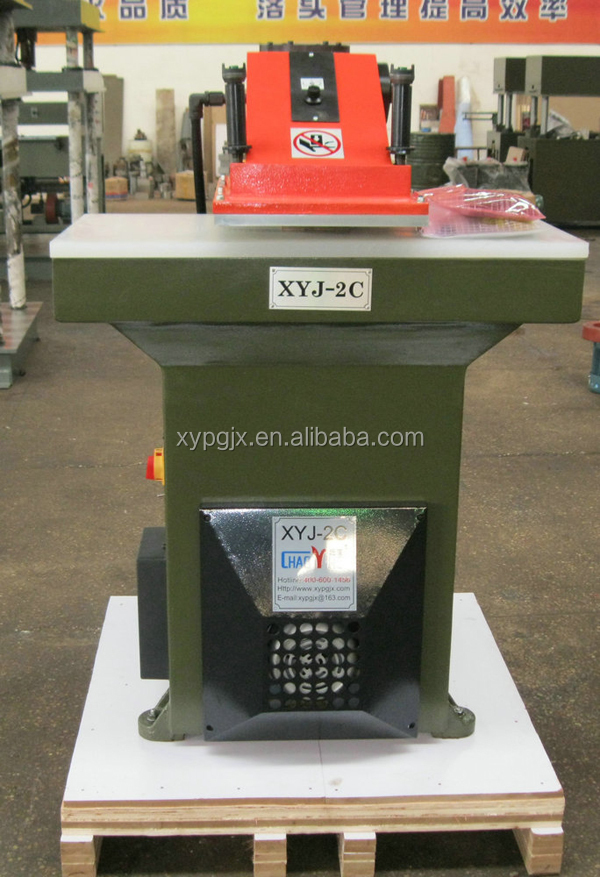

 Machine Pictures







please contact me if you need the press machine working video.

Remark:We can make the machine according to your specifical order ,for example the color,the motor information ,the working table etc.



Packaging & Shipping



Our Services

WHY CHOOSE XIONGYIONG  PRECISION MACHINERY?

1. More than 20 years experience in the field of die cutting machine.
 2.
Strictly Quality control



  (Xiongying established our own quality control team compare with other company, every product will be checked again and again before delivery according to SGS standard.)



3. Reasonable price and quick delivery time



 (We are the directly manufacturer of cutting machine and with full experience, the price is competitive and we have our big factory working house and many experience workers can ensure the delivery time)



4. OEM and ODM service.



(We have OEM for many oversea customers and we have our own ODM team can produce product on your demand accordingly}



5. Professional salesman and good service

 (All of our foreign sale man have to pass the strictly professional production knowledge training before their start to communicate with customer, and we will reply your inquiring asap no later than 24 Hours.



6. Problem - solving ability.



 Mistake is often happen in the business. Not all the supplier have the problem - solving ability(Someone transfer the responsibility to customer, someone lack the problem - solving ability),Xiongying will take full responsibility of our mistake and pay for our mistake.





OUR CERTIFICATES:




Customer factory visit:





Exihibition:

FAQ

1)  Are you the factory or trading company?

    We are the direct factory



2)  What is your MOQ of your Product?



   Normally our MOQ is 1 set



3)   Do you have any certification on your product?



   We have CE and SGS approved for our machines.



4)   What is your main market for the overseas?



    Our mainly exported to Iran,Indian,Italy,Europe and so on



5)   What is the warranty of your product?



     We have 1 years warranty



If have any questions about the cutting machine, welcome to contact us with below informations:
