Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: CHAOYING
  • Model Number: XYJ-2A/25
  • After-sales Service Provided: Overseas third-party support available, Overseas third-party support available
  • type: die cutting machine
  • Pump: Yuken brand made in Japan-china venture
  • Contactor /thermal relay: Schneider made in France
  • Electronic parts: IDEC made in Japan
  • guarantee period: one year
  • certificate: CE and SGS
  • Voltage: as optional
  • motor power: 1.5kw
  • The MOQ: 1 set

Packaging & Delivery

Packaging Details standard exported woodern case
Delivery Time 25 working das

Hydraulic Swing Arm cutting machine/fabric die cutting machine



Use and characteristics:



The machine is suitable for cutting various materials such as leather, plastic, cloth, leather bags, toys, caps, foam sheets, floor materials, soft wood sheets and etc. by die cutter.



1.The swing arm can sway flexibly with excellent operating visual field, so it is especially suitable for cutting genuine leather materials.



2.The switch for operation with both hands ensures the safety of operators.



3.The column is provided with self-lubricating system without the need of manual lubricating, which enhances the service life of machine.



4.The hydraulic system is operated under the closed environment, so the machine can work under general working conditions.





Technology specifications :





Maximum cutting force

250kN/25Tons

Travel adjustment range

                                               0-75mm

Range between the working tables

                                            65-150mm

Size of the upper pressing board

                                            450× 500mm

Size of lower worktable

                                           1000× 500mm

Motor power

                                                   1.5kW

Overall dimension

                                       1080× 1080× 1600mm

Net weight

                                                  1050kgs

Gross weight

                                                 1150kgs

Machine Color

                                         grey& red or as optional

Electronic supply

 50hz or 60hz , single phase or three phase  220v /380V /440v

Machine logo

                                          CHAOYING or Customized

OEM

                                                   Yes

Package

                                          Standard export wooden box





CUTTING PRESS MACHINE APPLICATION



The leather cutting machine is mainly suitable for cut one layer or multilayer of leather, rubber, plastic,

 hard papers, fiber, chemical fiber, non-woven and so on.

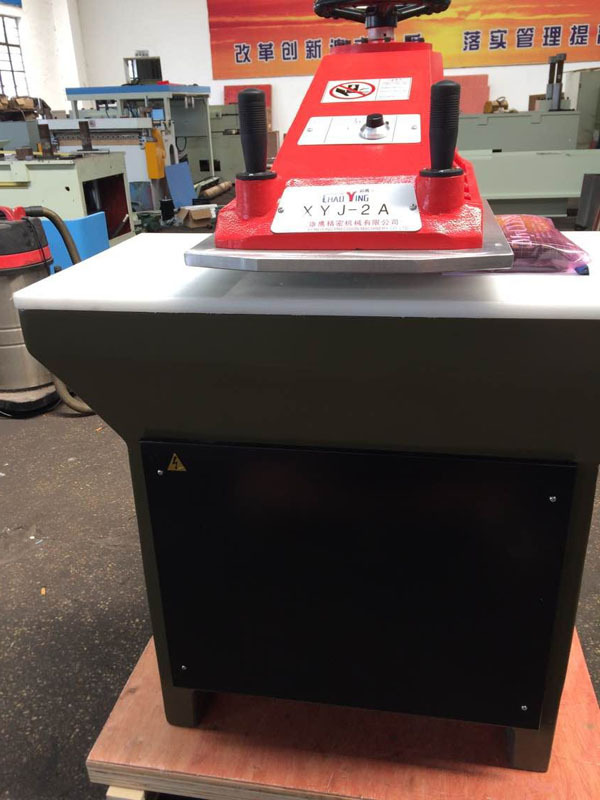

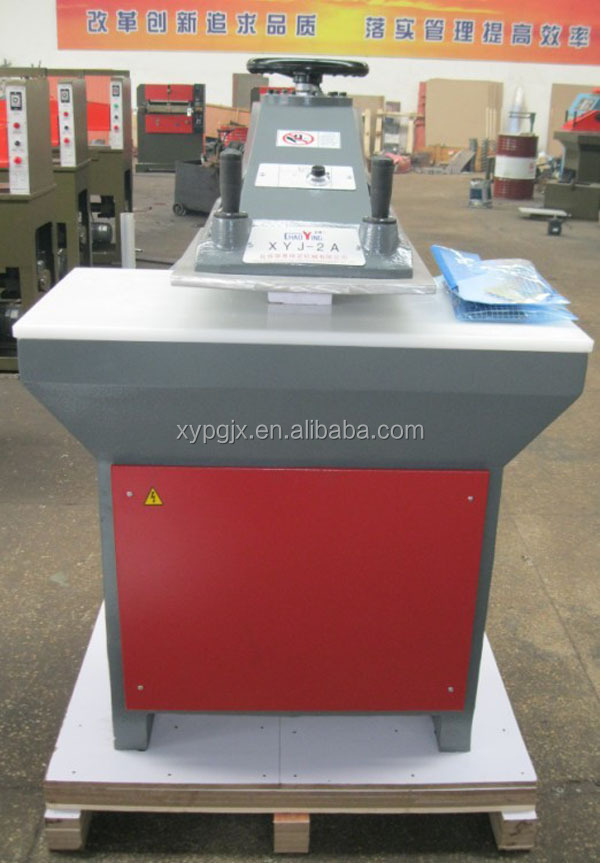

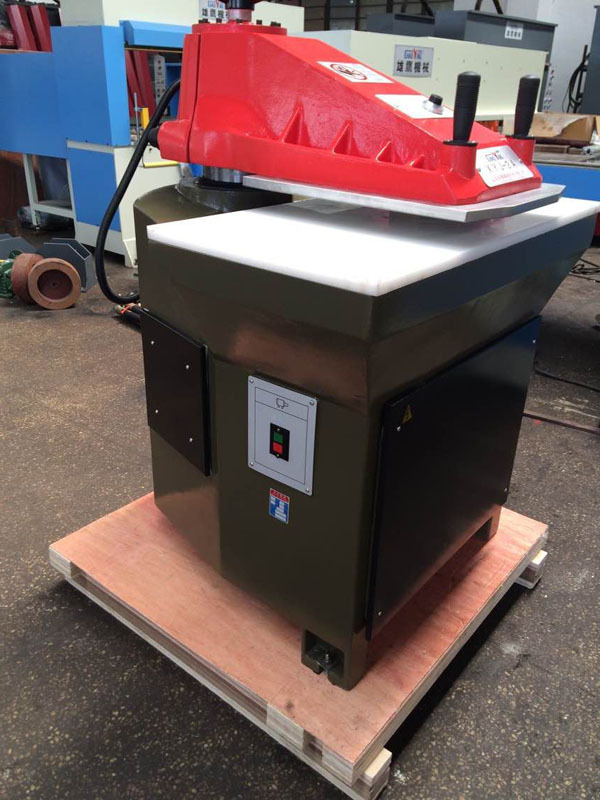

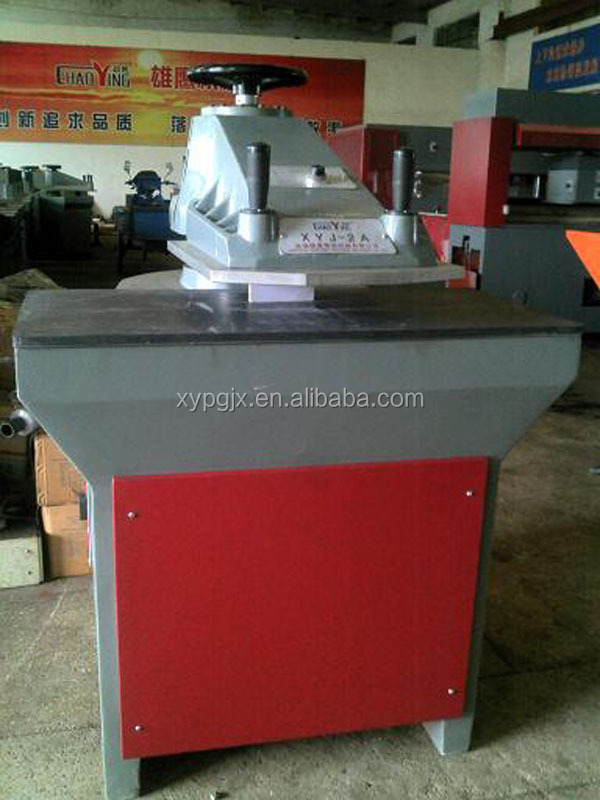

HYDRAULIC SWING ARM CUTTING MACHINE PIC











please contact me if you need the press machine working video.

Remark:We can make the machine according to your specifical order ,for example the color,the motor information ,the working table etc.



OUR FACTORY LOCATION:





Advantages:



1.Fast, quiet and easy to operate

2.All standard die constructions can be used – strip steel, wood forme or forged steel

3.Powered head traverse for effortless operation

4.Simple, accurate die setting and daylight adjustment

5.Quiet, vibration free operation

6. Uses a hydraulic-down and hydraulic-up system to provide an even cutting depth

7. High speed

8. Die height and material height can be set quickly

9. Cut materials in single or multiple layers

10. Complete with high grade polypropylene cutting board and operating manual

Machine Working video links :

http://v.youku.com/v_show/id_XNDc1MzQ2OTA0.html



OUR CERTIFICATES:





Customer factory visit:





Exihibition:



The  FAQS.





1, Are you a factory or a trade company ?



we are a factory , welcome you to visit our factory and discuss our business face to face .



2, Where is your factory located ? How can I visit your factory ?



Our factory is located in No 98 Wolong Road Daguang Town Yancheng city Jangsu Province China .



You can take plane from Guangzhou city to Yancheng city or shanghai to yancheng . It is very convenient .



3, Do you attend any Fair ?



Yes , we attend some professional fairs every year :



All china leather exhibition & china international footwear fair



( in Shanghai china  )



International exhibition on shoes& leather industry



 (In Guangzhou china )



4, Can we use our company logo on your machine ?



Yes , you can use your logo if necessary .



5, How does your factory control the machine quality ?



We have some QC staffs to inspect and test the machine . every machine must be tested for 12-16 hours before leaving factory .



6, How long is your guarantee period ?



One year
