Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: CHAOYING
  • Model Number: XYJ-1/25
  • After-sales Service Provided: Overseas third-party support available
  • type: shoe making machine
  • working table size: 1600*510mm
  • motor power: 2.2 kw
  • hydraulic valve: Camel brand made in Taiwan
  • hydraulic pump: Yuken brand made in Japan-china venture
  • Contactor /thermal relay: Schneider made in France
  • Electronic parts: IDEC made in Japan
  • machine color: as optional
  • guarantee period: one year

Packaging & Delivery

Packaging Details Standard wooden box packing
Delivery Time Within 25 days

Shoe Making machine

Hydraulic Traveling Head Shoe Making machine

Usage and characteristics:

1. This machine is mainly suitable for cutting varieties of leather, rubber, plastic, fabric, etc with a blade of fixed shape.

2. Gantry frame structure is adopted, with high intensity and without deformation.

3. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.

4.The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.

5.The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.

6. Differential oil way is adopted to allow rapid and convenient cutting.

7.An automatic feeding equipment can be added optionally to improve work efficiency.

Main technical parameters:



Maximum cutting force                                 250KN
Working table(mm)                            1600*500 mm
Travel head size(mm)                              500*500 mm
Adjustable stroke (mm)                              30-150 mm
Motor power                                    3kW
Net weight                                 1550kgs
Gross weight                                 1660kgs
Dimension                            2200*700*2000mm
Automatic grade                                   Manual
Drive                               Hydraulic oil
Hydraulic Oil                               46# or 68#
OEM                                  welcome
Machine color                                Blue & Red
Machine Logo                   CHAOYING or   Customerized



Application  Range :



Factory  scenes :

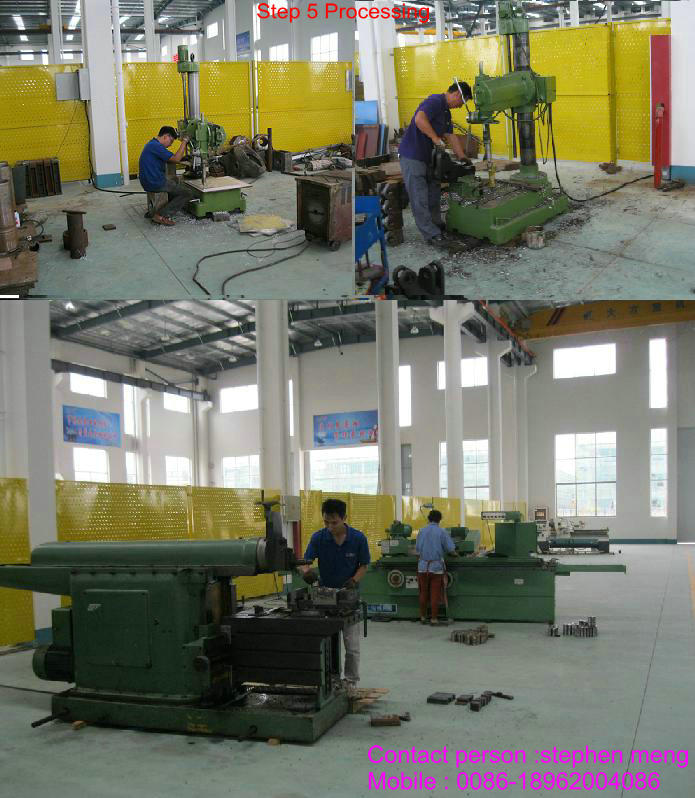

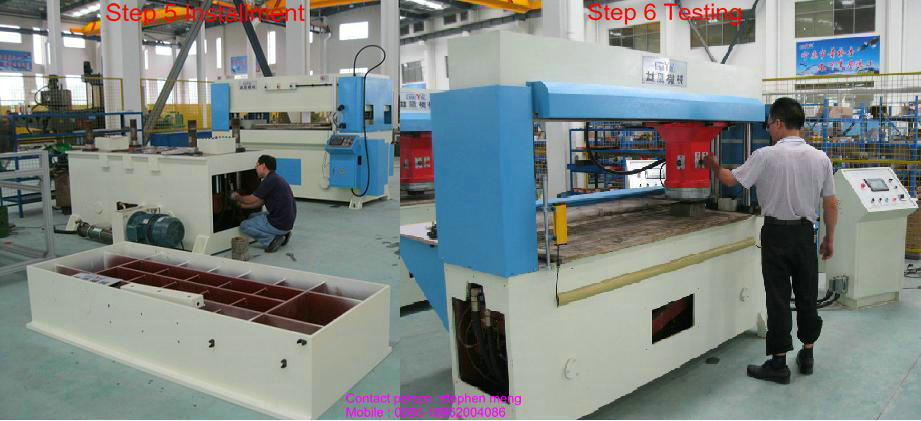

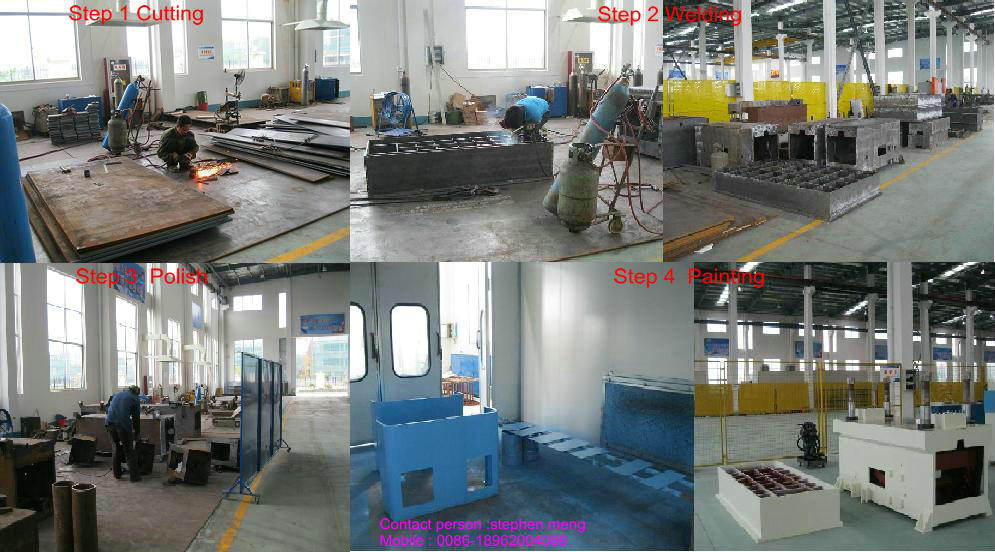

Machine making procedure :

More Machine choices :

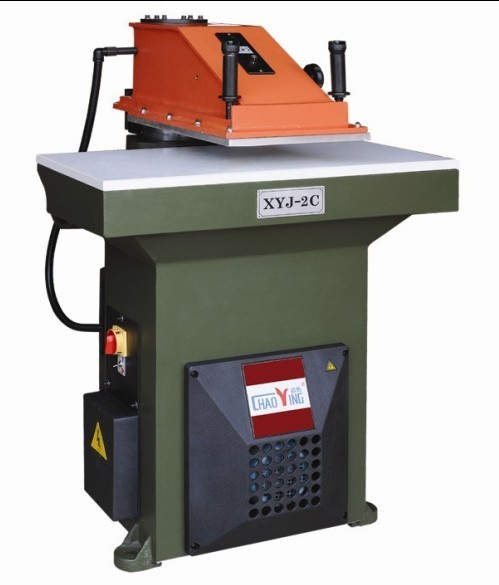

                            Atom type swing arm cutting machine

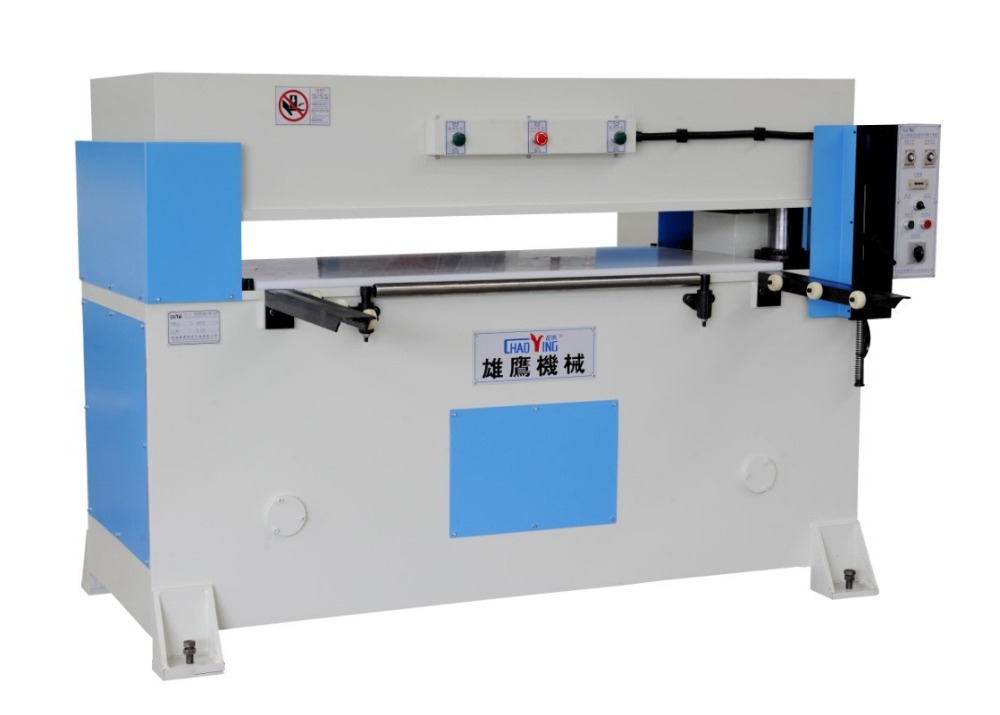

                                                                 Standard beam press

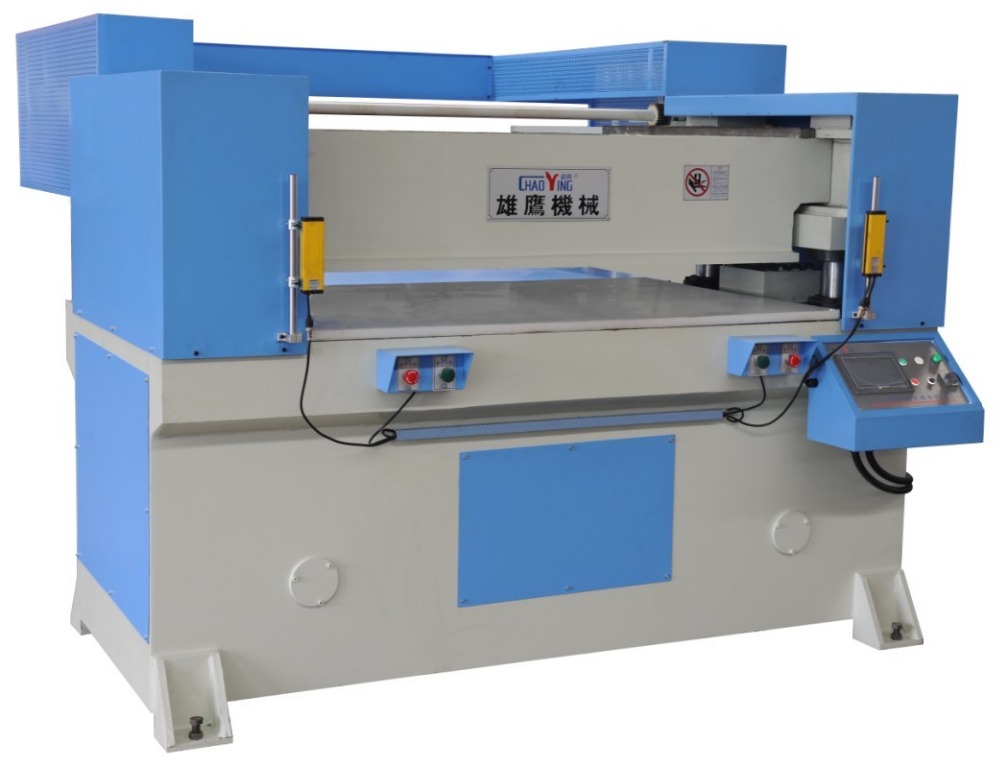

                                   Hydraulic Receding Head Cutting  Machine
