CE hydraulic traveling head shoe making machine

FOB Reference Price:Get Latest Price
US $1 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Semi-Automatic
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CHAOYING
Model Number:
XYJ-1/25
Type:
Cutting Machine
Voltage:
220V/380V
Power(W):
2.2kw
Dimension(L*W*H):
2300*1100*2000mm
Weight:
2400kgs
Certification:
CE Certification
Warranty:
One Year
After-sales Service Provided:
Overseas third-party support available
type:
shoe making machine
Machine power:
2.2 kw
worktable size:
1600*510mm
Max cutting force:
25T
Hydraulic pump:
Camel brand made in Taiwan
Hydraulic valve:
Yuken brand made in Japan-china venture
Contactor /thermal relay:
Schneider made in France
Electronic parts:
IDEC made in Japan
The MOQ:
1 set
SupplyAbility
SupplyAbility:
45 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard wooden box
Port
SHANGHAI
Lead Time :
20 DAYS

product information.jpg

Shoe making machine

CE hydraulic traveling head shoe making machine

Usage and characteristics:

1. This machine is mainly suitable for cutting varieties of leather, rubber, plastic, fabric, etc with a blade of fixed shape.

2. Gantry frame structure is adopted, with high intensity and without deformation.

3. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.

4.The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.

5.An automatic feeding equipment can be added optionally to improve work efficiency.

Main technical parameters:



product size.jpg



Maximum cutting force                                                25 T
Working table(mm)                                        1600*510 mm
Travel head size(mm)                                          500*500 mm
Adjustable stroke (mm)                                           30-150 mm

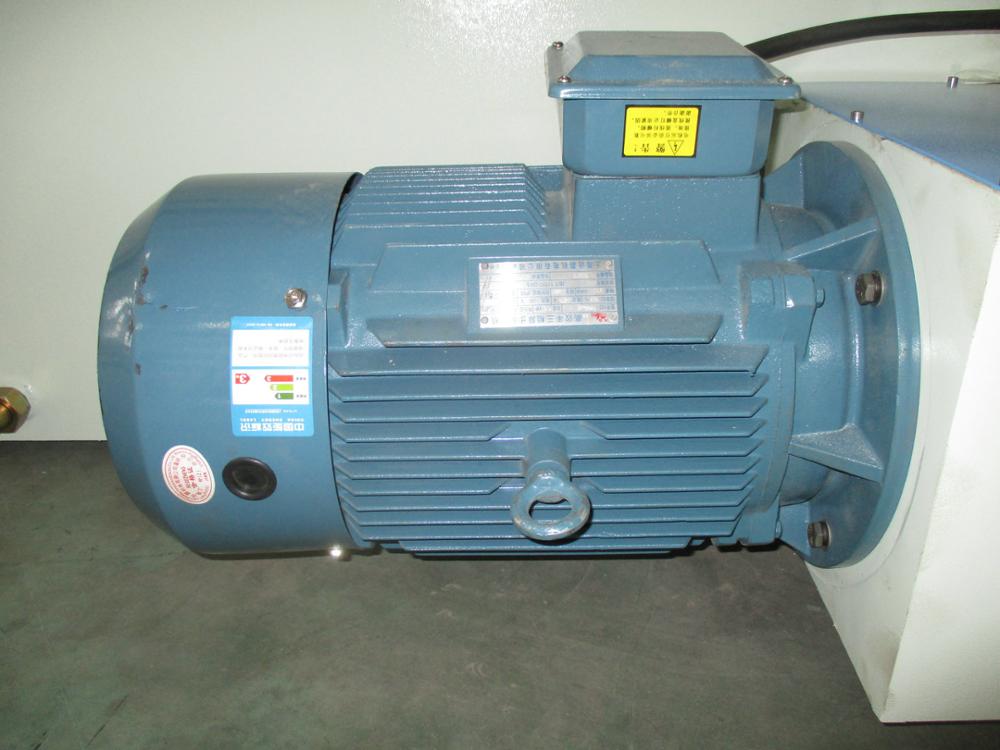

Motor power                                               2.2kW
Net weight                                            1550kgs
Gross weight                                            1660kgs
Dimension                                      2300*710*1900mm
Machine color                                 blue & red or as optional
Power supply                    3 phase 380v /220/440v or as optional
Hydraulic oil                                            46# or 68#
OEM                                                  Yes
Machine logo                                 CHAOYING or Customerized



Remark:We can make the machine according to your specifical requirements,for example the color,the motor information ,the size of working table etc.



product application.jpg



      The leather cutting machine is mainly suitable for cut one layer or multilayer of leather, rubber, plastic,

 hard papers, fiber, chemical fiber, non-woven and so on.



         .jpg



































 014.jpg 004.jpg

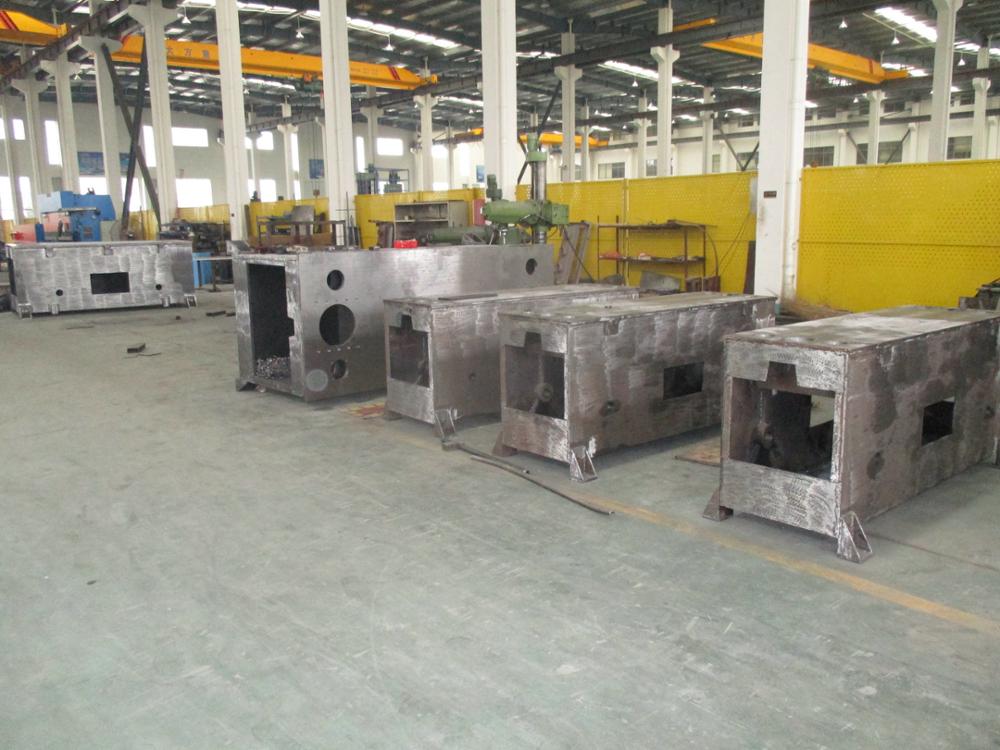

Machine making steps :

full automatic conveyer belt feeding PLC die cutting machinefull automatic conveyer belt feeding PLC die cutting machine

FAQ :

Trade terms :  FOB , CIF , C&F , EXWORKS

Payment term : T/T  30% in advance as down payment term , the balance should be paid before

shipment , LC ;

Delivery time : one week if the machine is on stock , 30 working days if the machine is new-made ;

Package term : export standard crate ;
